Product Detail

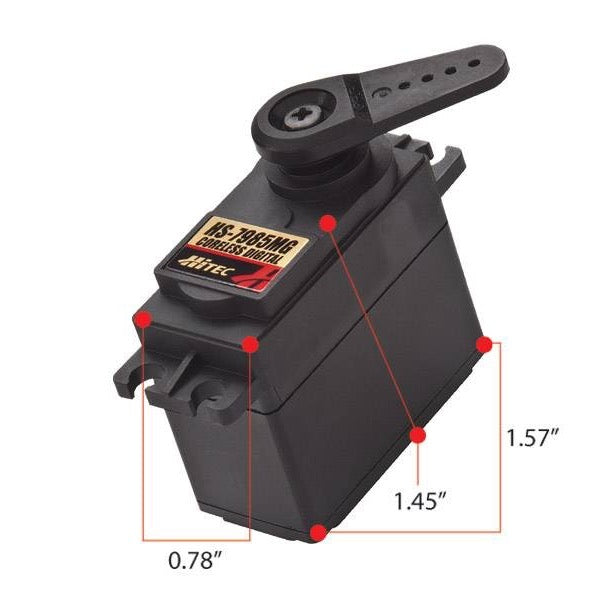

Operating Voltage Range (Volts DC) : 4.8V ~ 6.0V Speed (Second @ 60°) : 0.16 ~ 0.13 Maximum Torque Range oz. / in. : 144 ~ 172 Maximum Torque Range kg. / cm. : 10.4 ~ 12.4 Current Draw at Idle : 9 mA No Load Operating Current Draw : 240 mAStall Current Draw : 3,000 mADead Band Width : 1 µs Dimensions (Metric) : 40.0 x 20.0 x 37.0 Weight (Gram) : 62 Circuit Type : G2 Programable Digital Motor Type : Coreless Metal Brush Gear Material : Metal Bearing Type : Dual Ball Bearing Output Shaft (type / Ømm) : Standard 24 Case Material : Plastic Dust / Water Resistance : Splash Proof Connector Gauge (AWG) / Strand Count : 22 / 60
