Product Detail

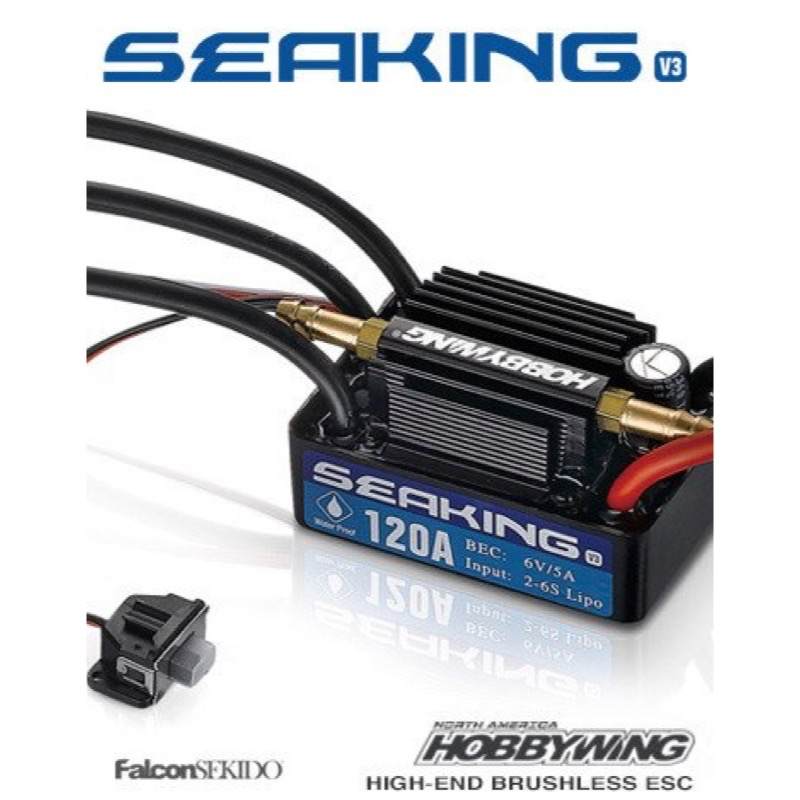

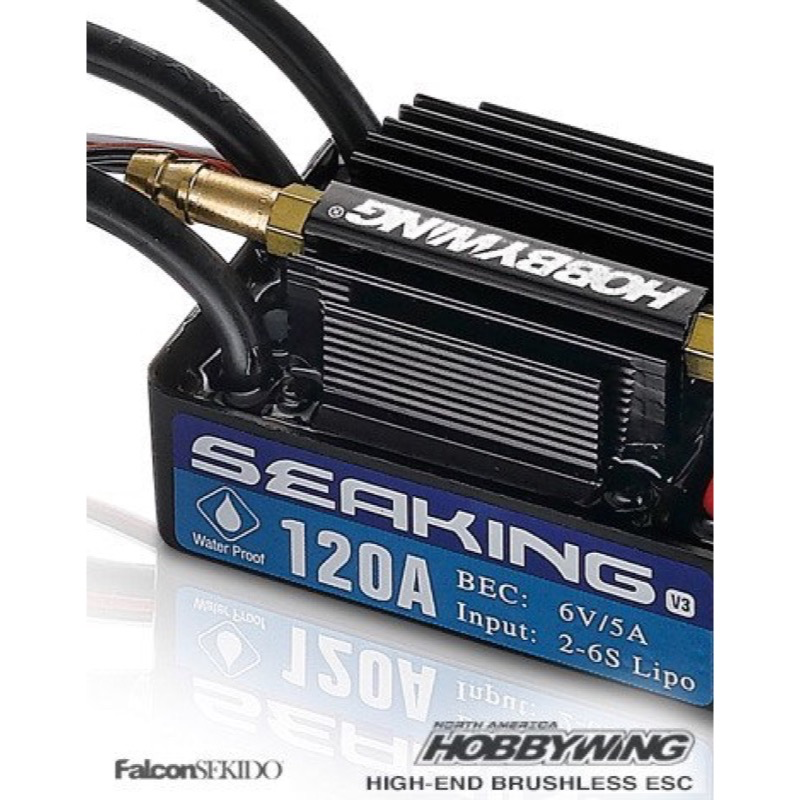

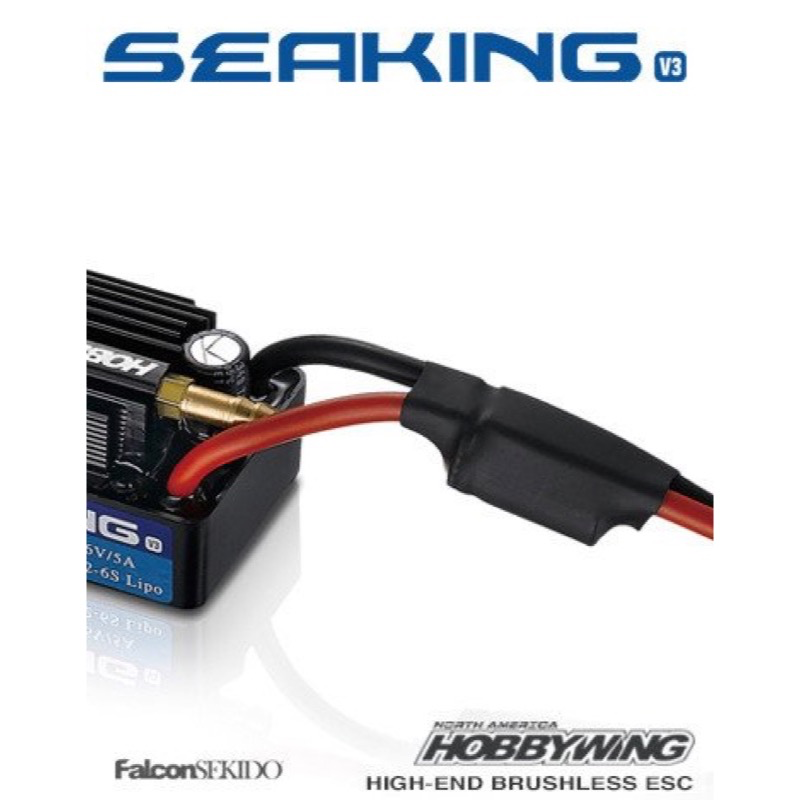

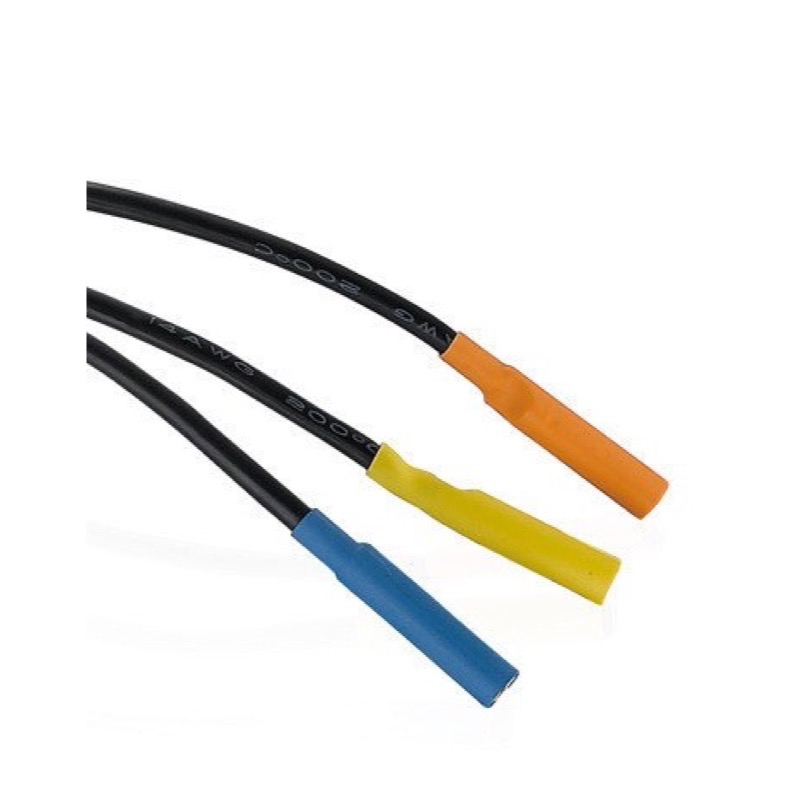

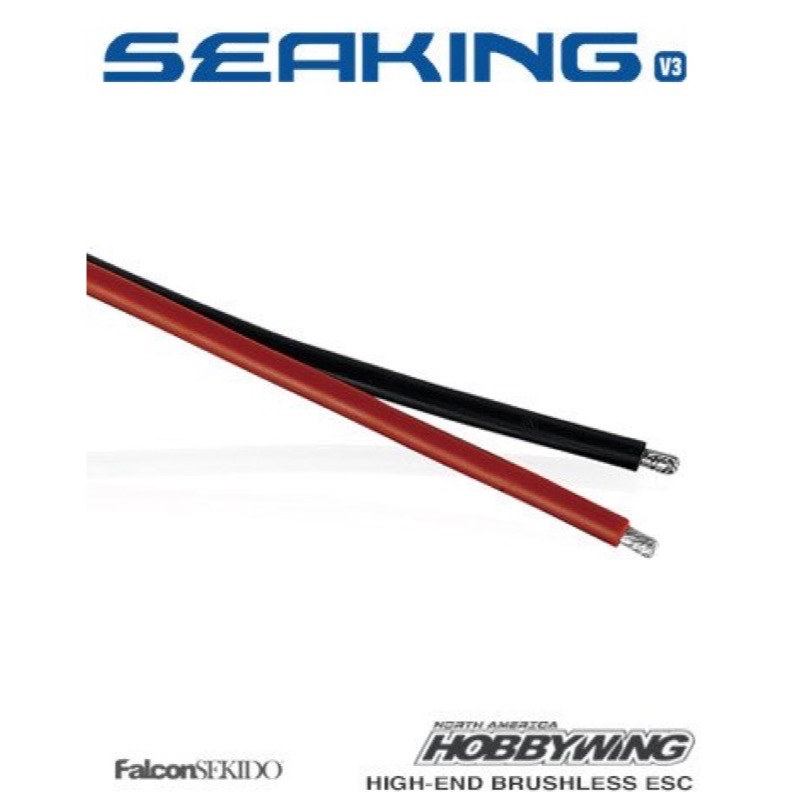

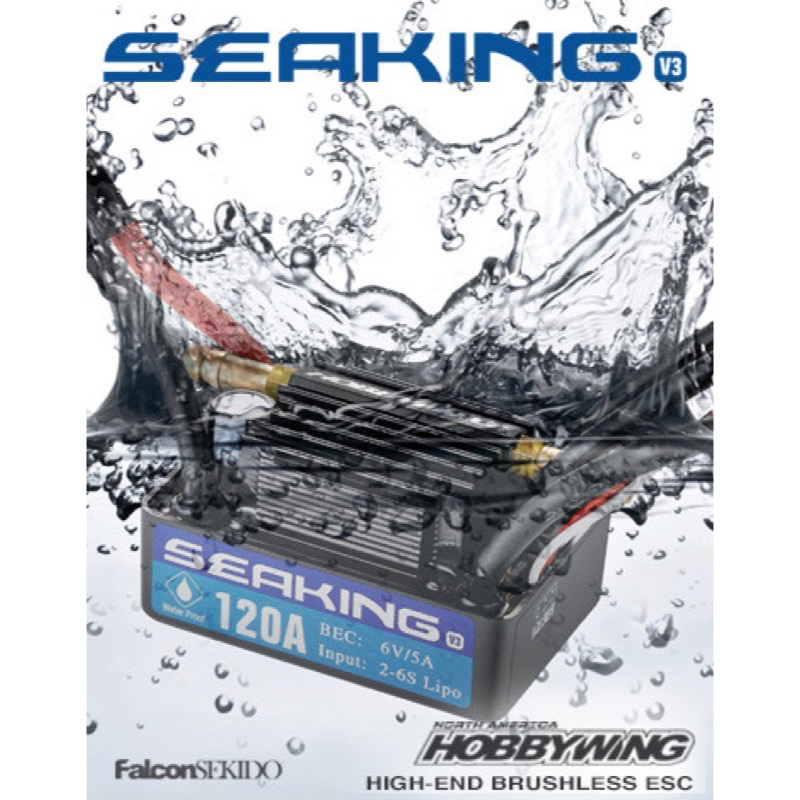

Brushed/Brushless: BLWaterproof: YesCont./Peak Current: 120A/720AInput: 2-6S LiPo, 6-18 Cells NiMHBEC Output: Linear Mode:6V/5AWires & ConnectorsInput Wires: 12AWG 200mmOutput Wires: 12AWG 150mmInput Connectors: NoOutput Connectors: No(Note: All the wire length above is the original length not the length you see from the outside.)ESC Programing viaTransmitter: SupportedLED Program Box: SupportedLCD Program Box: Not SupportedWiFi Module: Not SupportedProgram Port: Separate Program PortSize & WeightSize: 68.5 x 39.4 x 32mmI.D./O.D. of the Water Cooling Pipe: 3.0/5.4 mmWeight: 150gApplicationsBoat Length <110cmInstallation & ConnectionConnect the ESC, motor, receiver, battery and servo according to the wiring diagram below (Picture 1/2). Three wires from the ESC to the motor have no polarity, so you can connect them freely. Please recheck all the connections and ensure they are correctly connected before proceeding to step 2. (And you may find it’s necessary to swap two wires if the motor runs in reverse.)For safety, please always keep the propeller away from human body or any other objects.Red color input wire is positive pole, Black color input wire is negative pole.
