Product Detail

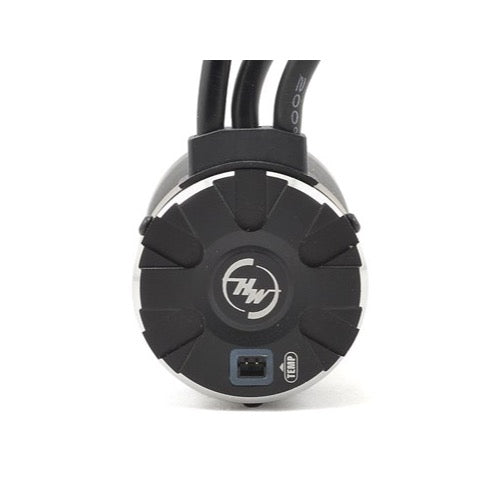

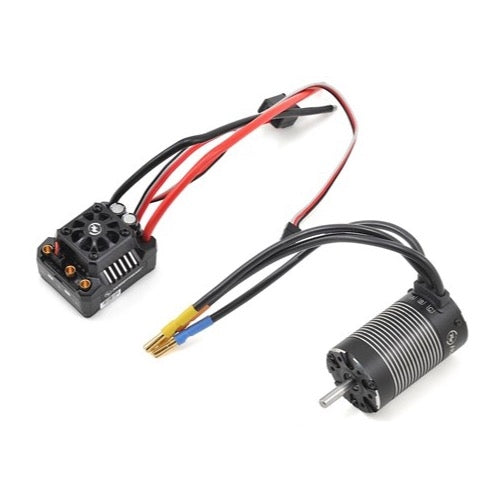

ESC Specifications: Continuous Current: 120A Peak Current: 830A Motor Type: Sensorless Brushless Motor Applications: 1/10th Short Course Trucks, Stadium Trucks, Monster Trucks Motor Limit: 2S LiPo: KV ≤6000, 3S LiPo: KV ≤4000, 4S LiPo: KV ≤3000 LiPo/NiMH Cells: 6-12S NiMH, 2-4S LiPo BEC Output: 6V/7.4V Switchable, Continuous Current of 4A (Switch-mode BEC) Size (LxWxH): 49.0x39.5x34.7mm Weight: 105g Programming Port: FAN/PRG Port Motor Specifications: kV: 3200 LiPo: 2-3S Resistance: 0.0083 No-Load Current: 4.9A Motor Diameter & Length: 36mm & 60mm Shaft Diameter & Length: 5mm & 18.5mm Pole: 4 Weight: 262 grams
