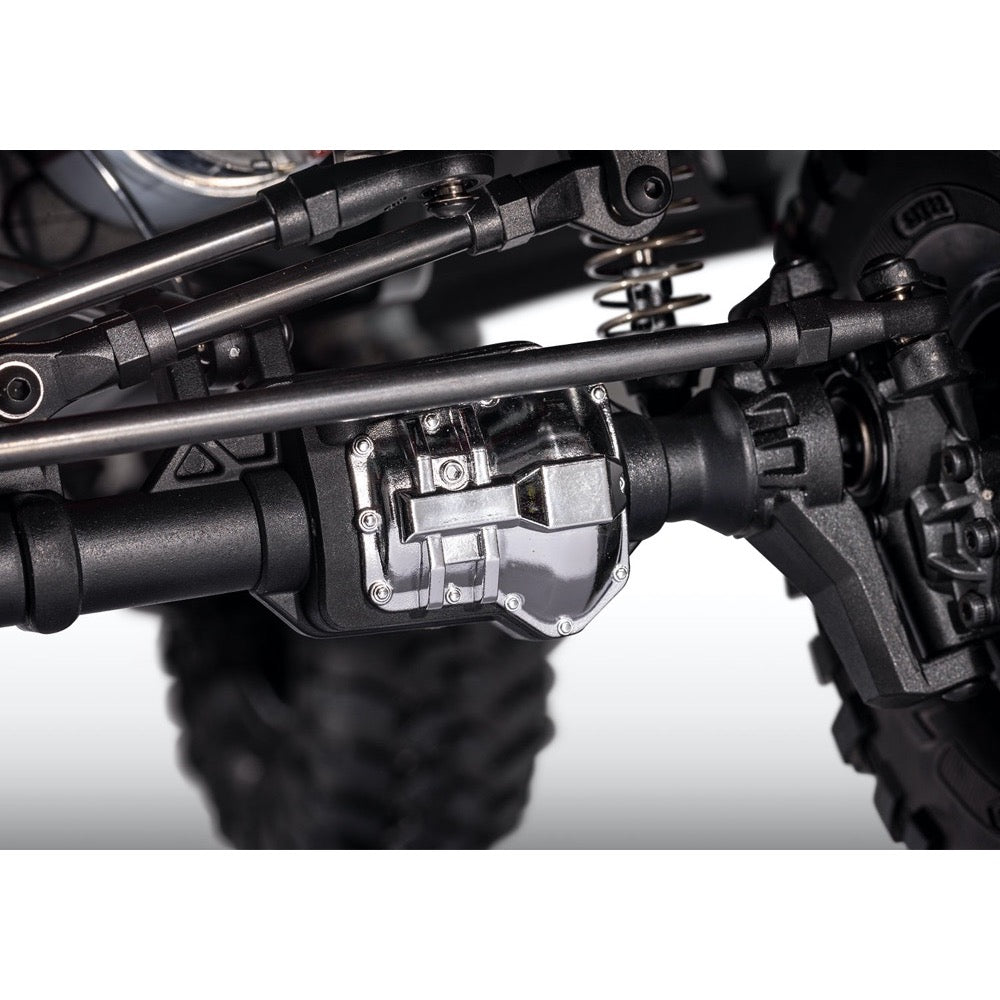

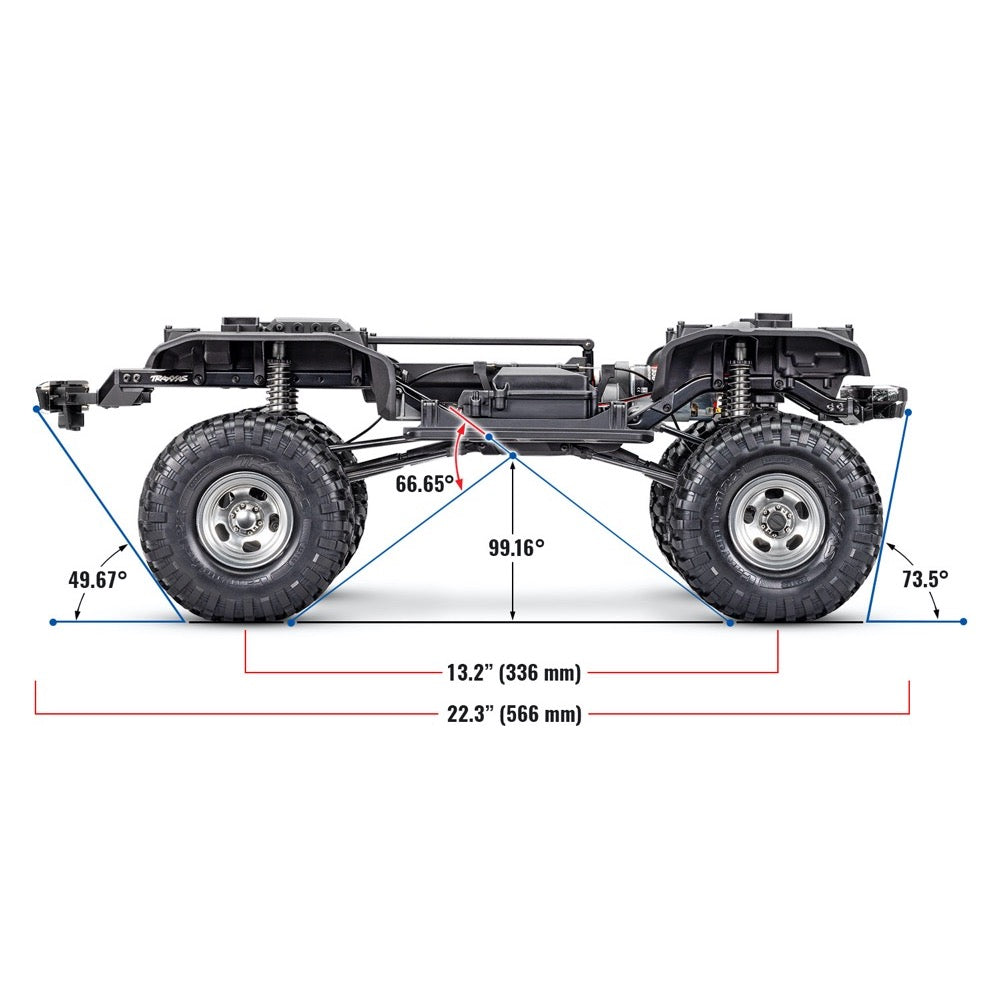

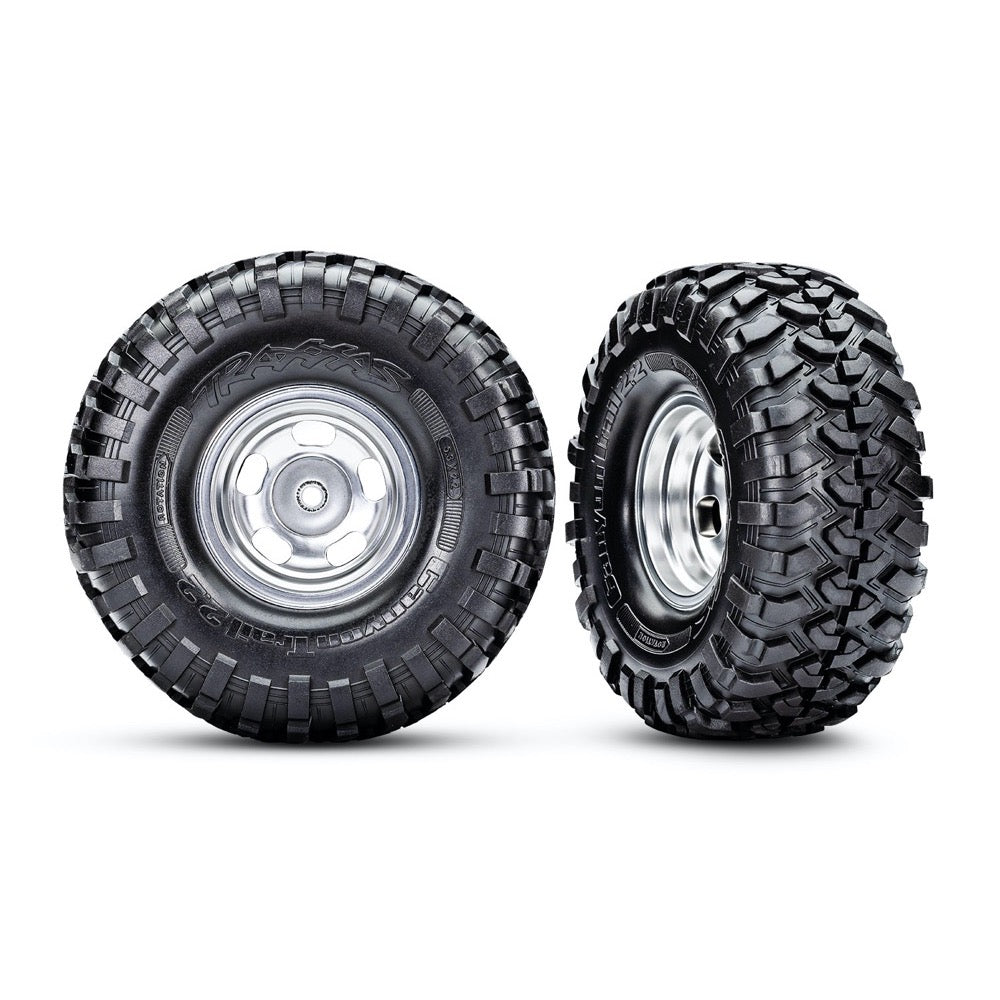

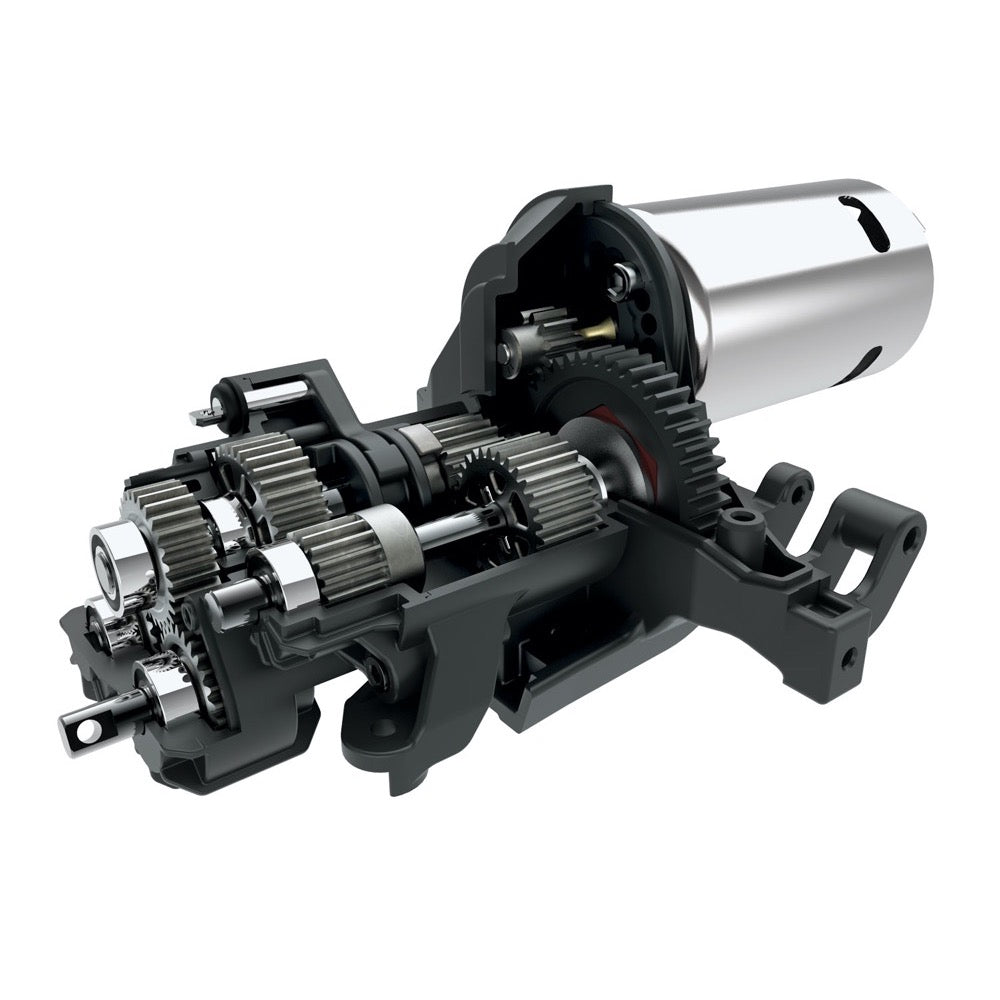

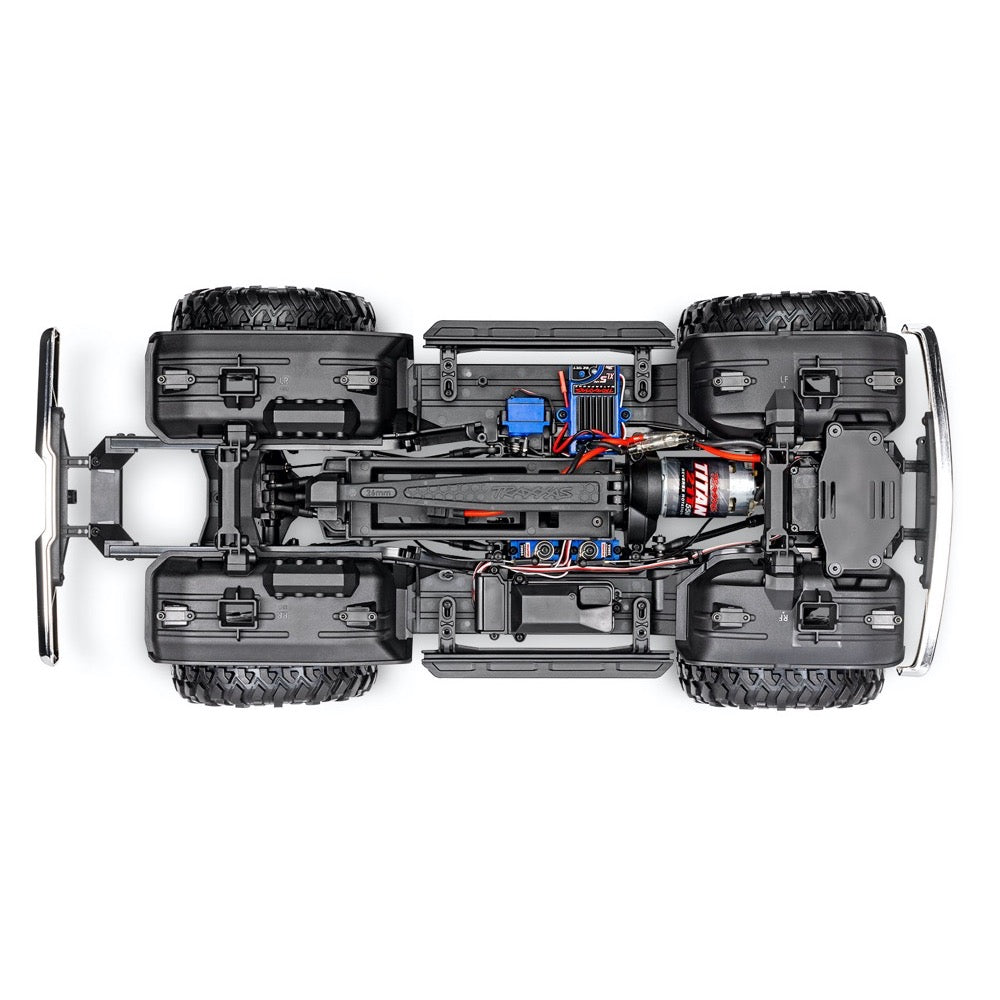

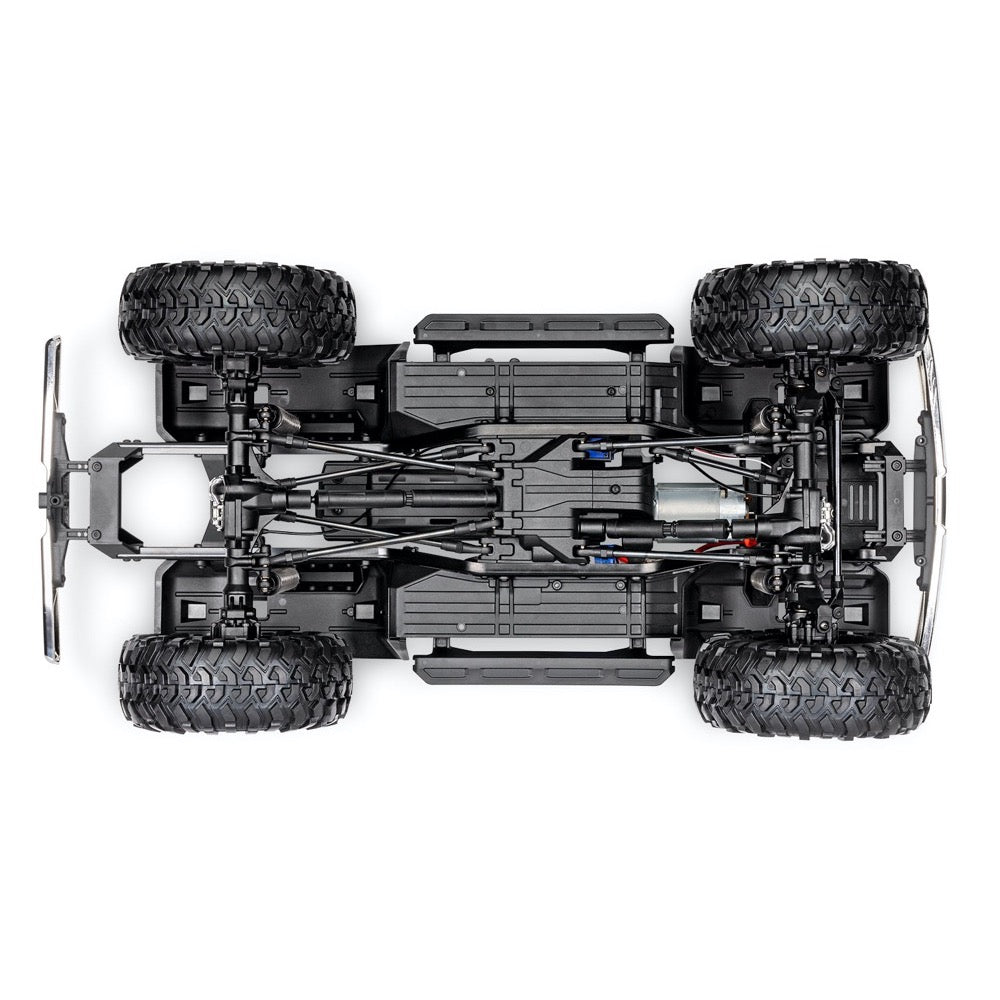

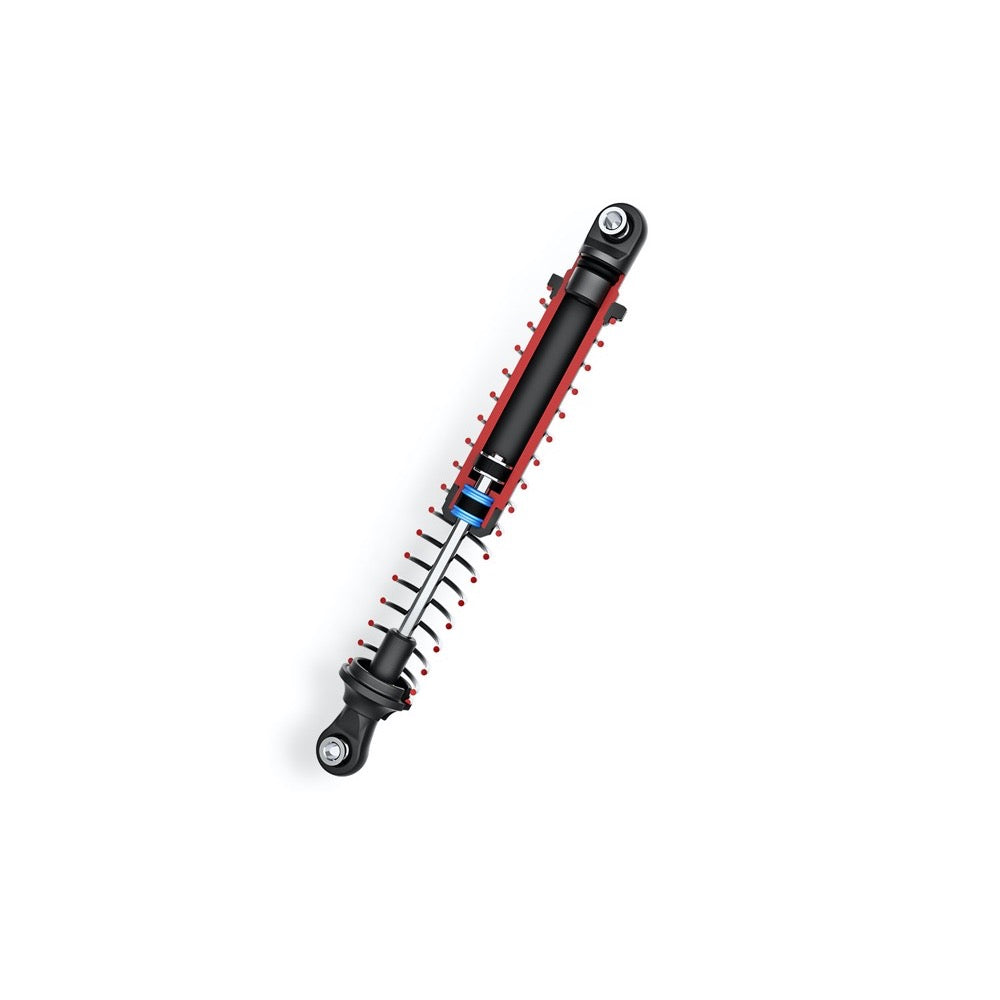

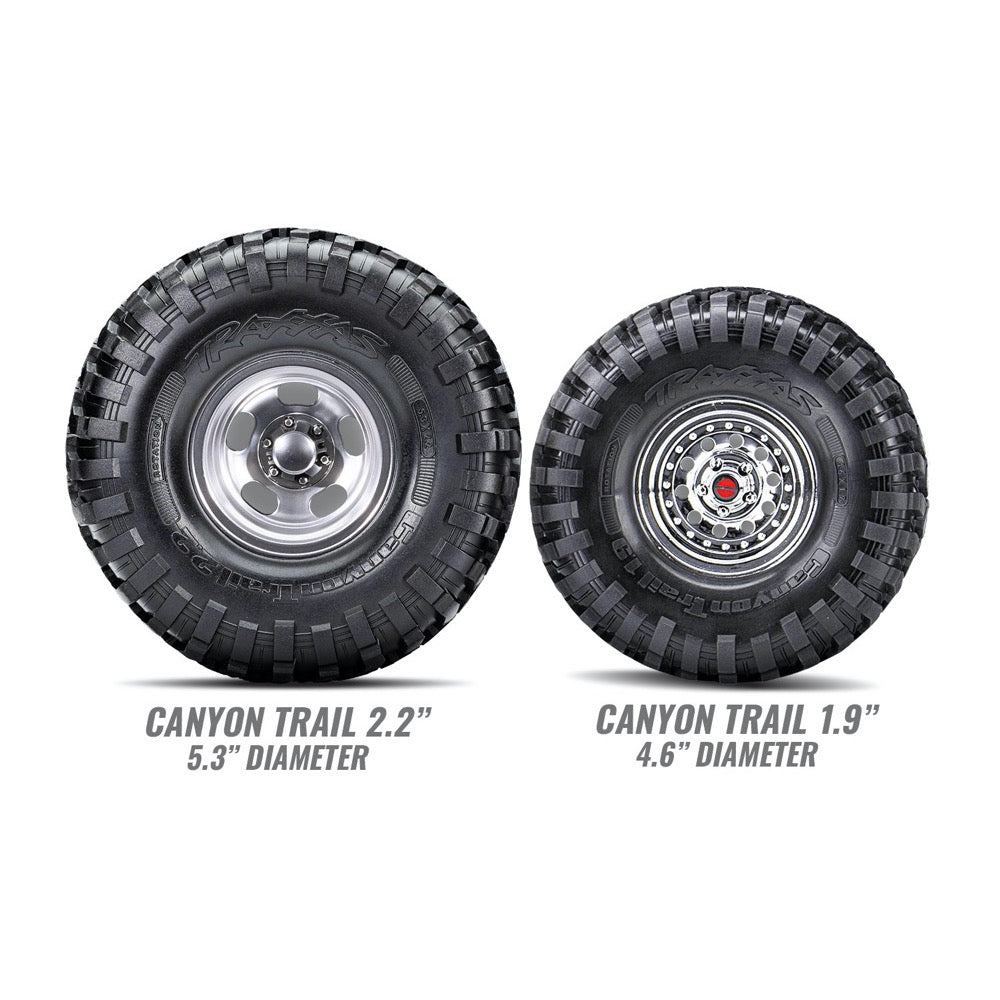

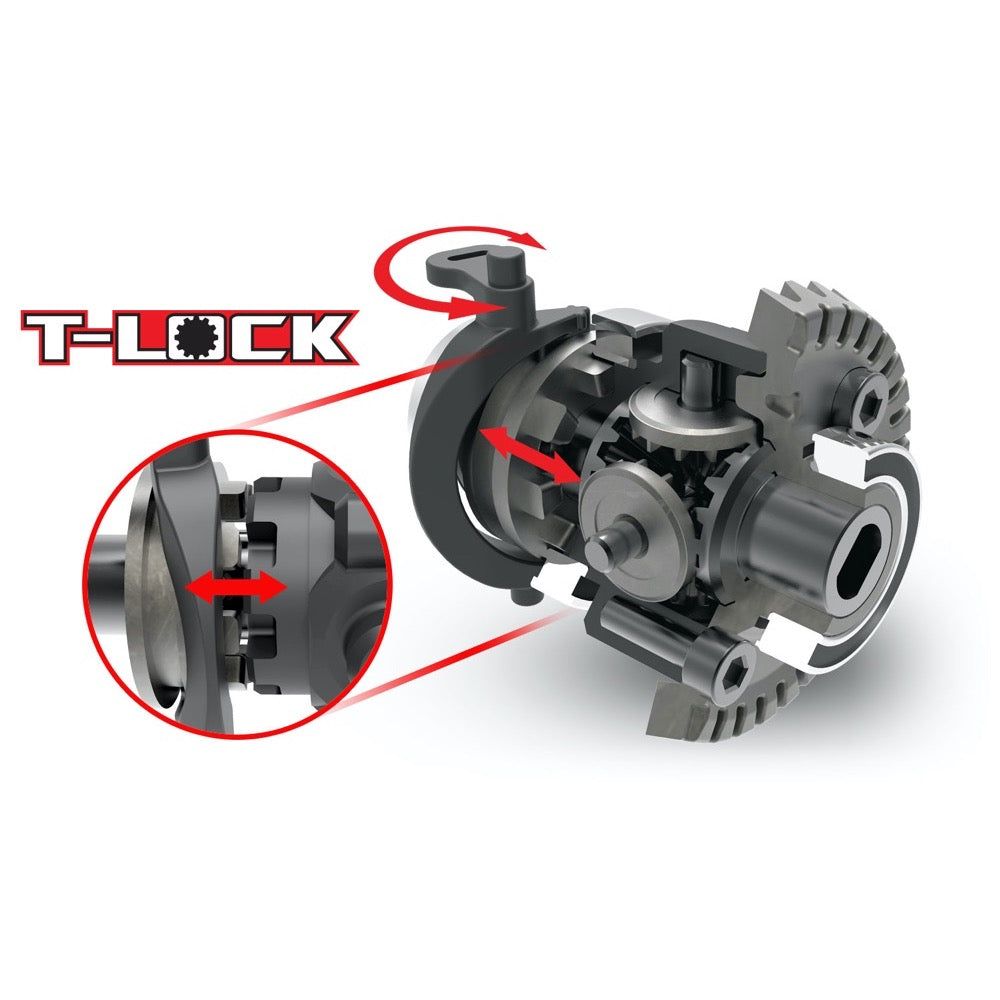

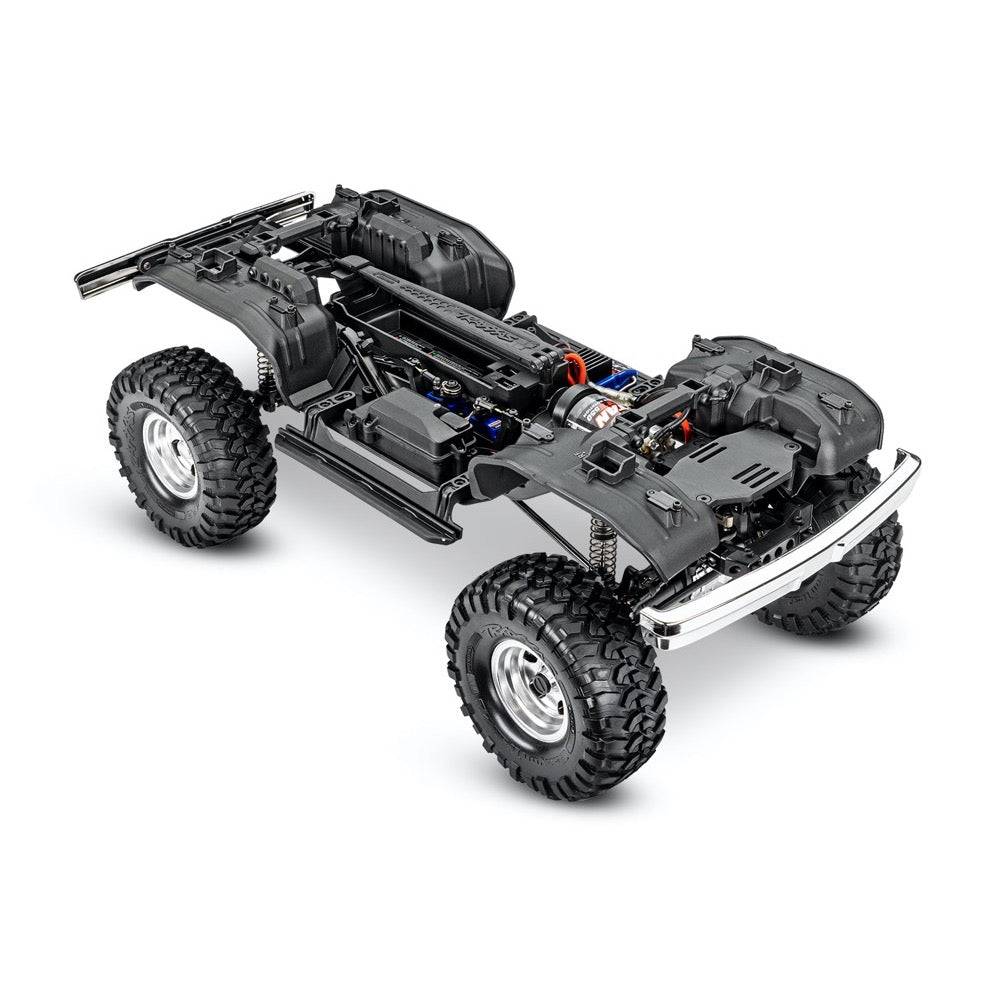

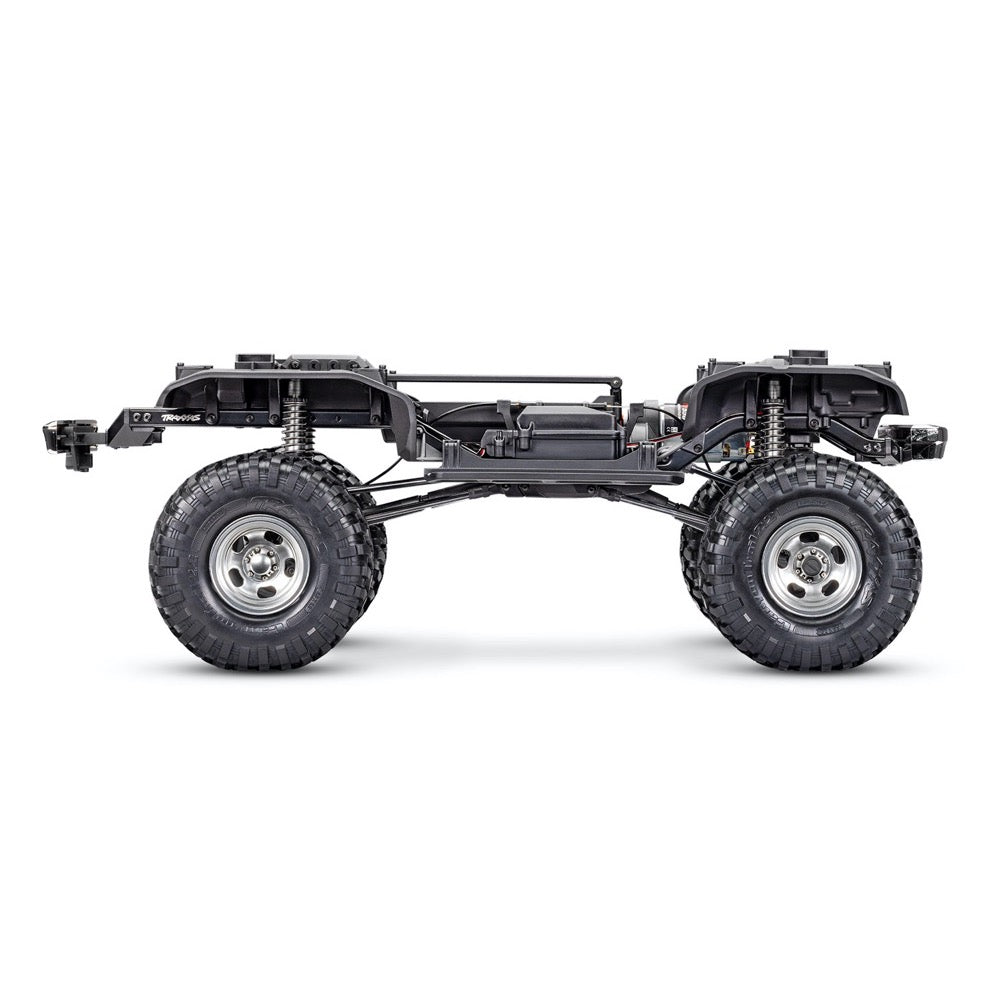

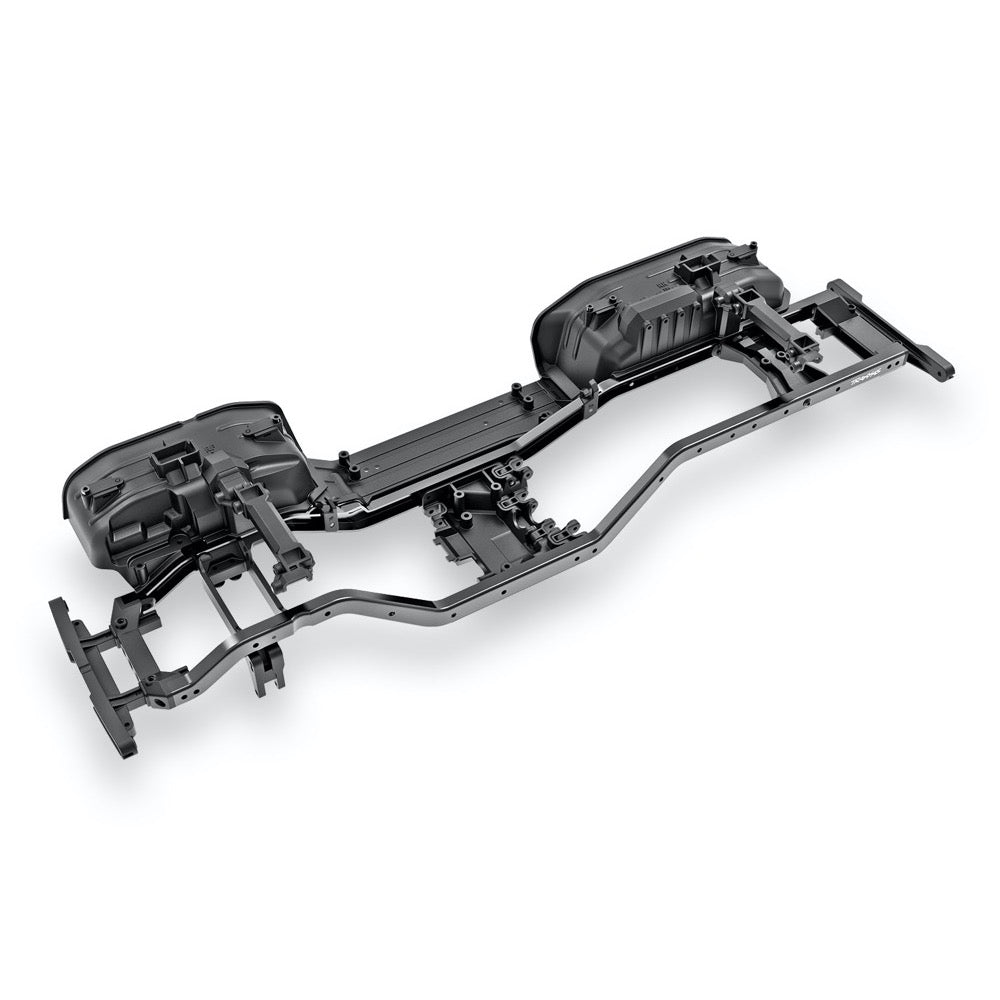

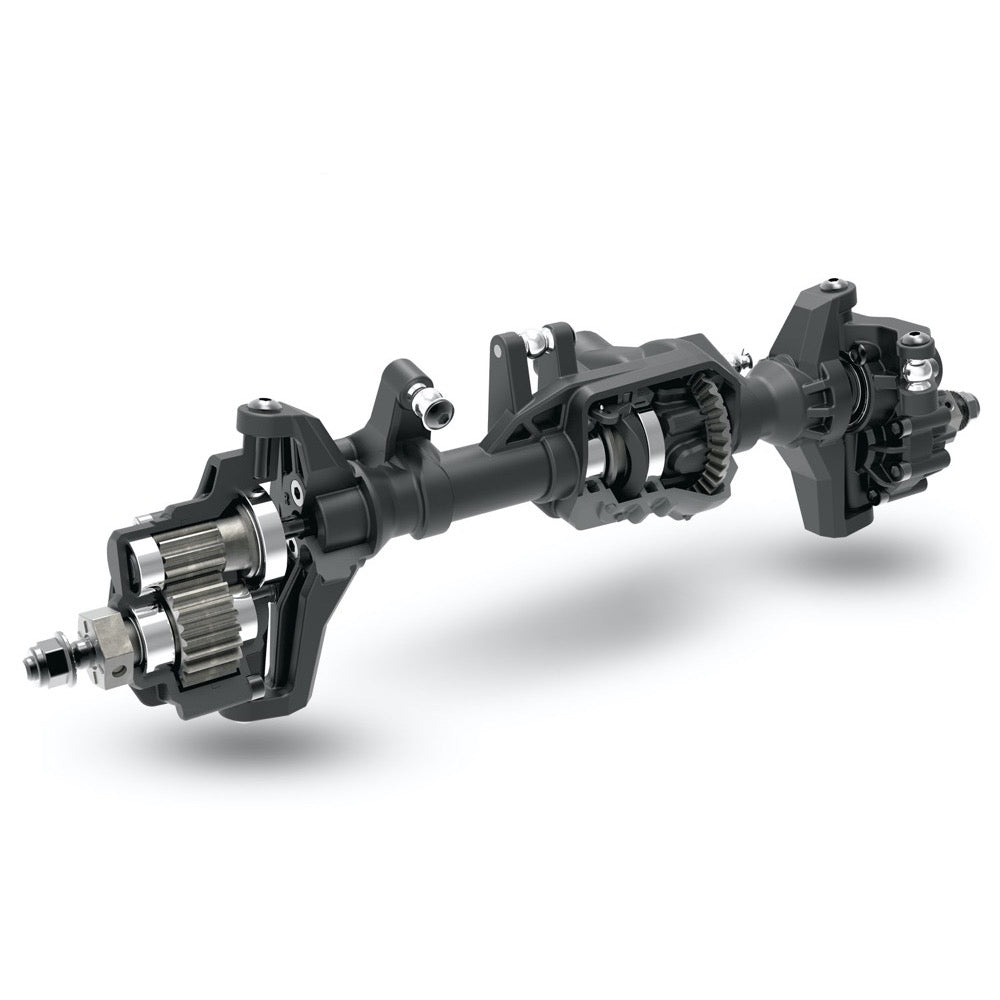

Vehicle SpecsLength: 22.30 inches (566mm)Front Track: 10.60 inches (270mm)Rear Track: 10.60 inches (270mm)Center Ground Clearance: 4 inches (99mm)Weight (w/o battery): 7.34lbs (3.33kg)Height (overall): 10.82 inches (275mm)Wheelbase: 13.23 inches (336mm)Approach Angle: 73.5°Departure Angle: 49.67°Breakover Angle: 67°Front Shock Length: 4.33 inches (110mm)Rear Shock Length: 4.33 inches (110mm)Front Wheels: 2.2 x 1.34 inches (56 x 34mm)Rear Wheels: 2.2 x 1.34 inches (56 x 34mm)Front Tires: 5.3 x 2.14 inches (135 x 54mm)Rear Tires: 5.3 x 2.14 inches (135 x 54mm)Hex Size: 12mmSpeed Control: XL-5 HVMotor (electric): 21T Reverse RotationTransmission: 2-speed High/Low, Remote ShiftingGear Pitch: 32 PitchDifferential Type: 4 Gear, Remote LockingChassis Structure / Material: Steel Ladder Frame with Nylon Composite CrossmembersBrake Type: Electronic “Hill Hold”Drive System: Shaft Driven 4WDSteering: Chassis Mounted ServoServo: 075X Metal GearTransmitter: TQi™ 2.4 GHz 4-Channel TransmitterReceiver: 6533Skill Level: 1Battery Tray: 158.8 L x 47 W x 23/26mm HMotor SpecsType: High-torque brushed motorSize: 550Weight: 390g (13.76oz)Length: 3.071” (78mm) overall length, 2.25” (57mm) can length, 1.532” (38.9mm diameter)Turns: 21T reverse rotationVoltage: 16.8VESC SpecsInput Voltage: 6–7 Cells NiMH, 2–3s LiPoCase Size: 1.23” W x 2.18” D x 1.04” HWeight: 2.6oz (74g)Motor Limit: 21-turns (550 size)On Resistance Forward: 0.004 OhmsOn Resistance Reverse: 0.004 OhmsPeak Current - Forward: 100APeak Current - Reverse: 100ABraking Current: 60AContinuous Current: 18ABEC Voltage: 6.0 VDCBEC Current: 1APower Wire: 14 Gauge / 5”Input Harness Wire: 26 Gauge / 14.5”Transistor Type: MOSFETPWM Frequency: 1700HzLow Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)Thermal Protection: Thermal ShutdownSingle-button setup: Yes, Traxxas EZ-Set®
